How to update a memory position

This article will show you how to update a memory position from a REM400/500 remote module.



Memory positions can be updated by the user from their remote module by overwriting1 the target angles of an existing, pre-defined memory position. This is useful for the user for both fine-tuning a memory position or replacing a memory position. Note that not all memory positions are reconfigurable, such as those not configured to 'Allow Occupant to Update Position', or those that use only switch feedback.



To update a memory position using a REM400 or REM500:

  1. reposition the seating to the new target position using motions (such as recline, tilt etc.)
  2. open the settings menu on the remote module (see How to open the status and settings screen) - Figure 1
  3. select Update Position from the menu — a list of pre-defined memory positions is displayed
  4. select one of the pre-defined memory positions to overwrite (choose one that you do not use regularly)
  5. an overlay will prompt you to confirm that you want to overwrite this pre-defined memory position with your new seating position:
    • select Yes to proceed — your new memory position will overwrite the existing memory position and will be ready to use immediately;
    • select No to go back to the list of pre-defined positions.

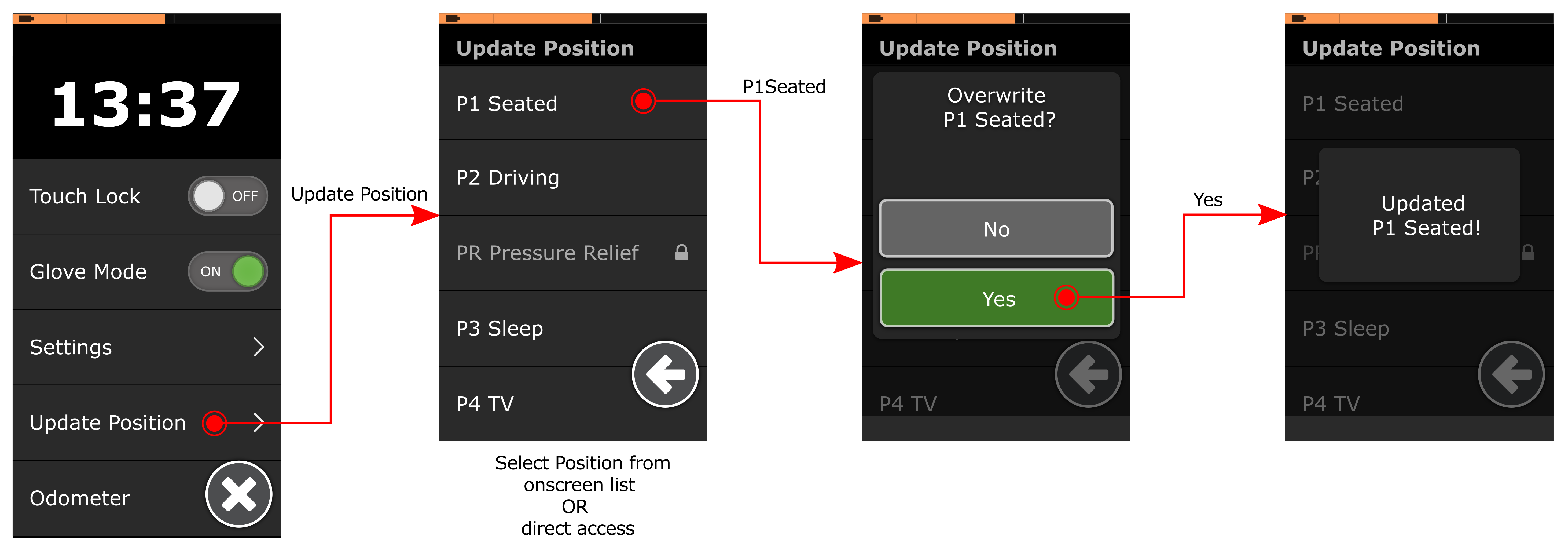

Figure 1: Updating memory positions — REM400/500



After a memory position is updated, the remote module's screen will return to the list. To update another pre-defined memory position, repeat the above from step 1.



NOTE

For more information, see:
